Budget-friendly GPS Guidance System

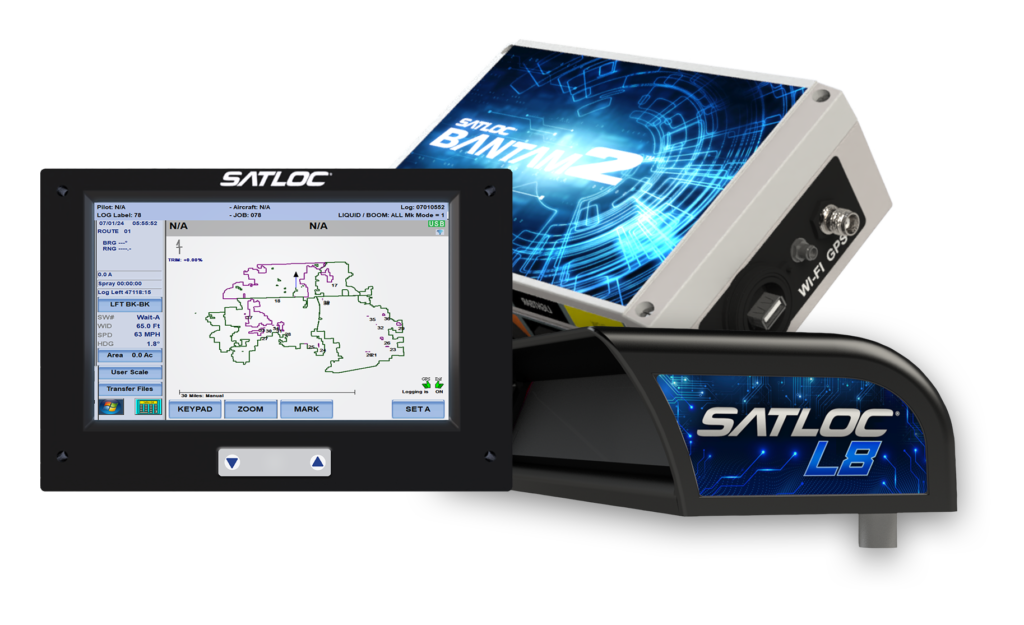

The Satloc® Bantam 2™ offers several improvements over the original Satloc Bantam.
- Upgraded GPS receiver for improved performance and accuracy
- Upgraded CPU
- WiFi connection capability
- Increased memory
- Works with Satloc Cloud
- Runs with New L8 and H8 Lightbar
- Simple upgrade kits for current Bantam users (screen and the majority of cabling can be reused with Bantam 2)
Advanced GPS Receiver and AirTrac™ Guidance Software
The new GPS receiver in the Bantam 2 offers more accurate and reliable positioning, better integration capabilities, and the ability to adapt to new satellite signals and constellations as they become available.
Satloc AirTrac™ guidance software powers the Bantam 2. This software displays a real-time moving map that provides visual guidance and shows important data, including sprayed swaths, field boundaries, skips, and overlaps. The new AirTrac software also includes storing of and guidance to marks, waypoints, and polygons. Satloc AirTrac can fly various patterns, such as Back-to-Back and Racetrack, while monitoring acreage sprayed and application rates. Transfer your log and job data via USB thumb drive or Satloc Cloud.
Another user-friendly feature added to Satloc Bantam 2 is the ability for a pilot to easily import and convert KML files into Satloc JOB files.
- Quick Transfer – Copy KML files directly from a USB to the Bantam 2.
- Effortless Conversion – Convert KML files to JOB files in just a few taps with just four button steps
- No Extra Setup – JOB files are automatically saved for future use and instantly displayed on the map.
- Save Time in the Cockpit – Plan jobs in Google Earth and execute.
Satloc Bantam 2 works in tandem with:
- Satloc IntelliFlow 3 (IF3)
- Satloc IntelliFlow 2 (IF2)
- “Legacy” IntelliFlow
In conjunction with the Bantam 2, these flow systems manage liquid applications and spray patterns using constant rate control, reducing fuel, flying time, and application costs.
Advanced Equipment
The Satloc Bantam 2 CPU is not just compact, it’s built within a rugged, durable case that’s specifically designed to withstand the rigorous movements of aircraft. This robust construction helps ensure the equipment’s longevity and reliability, giving you peace of mind in the field.
The touchscreen utilizes modern technology, enabling users to touch, press, and access information.
Communication
Integrated Wifi
In conjunction with Satloc Cloud, once a setup is complete in the Bantam 2 system, users can transfer files via Satloc Cloud. Click the button below to learn more about Satloc Cloud.
Increased GPS Capabilities
While the new receiver does support differential GPS, its capabilities extend beyond traditional DGPS, offering more advanced and flexible positioning solutions.
- Supports multi-frequency operations, ensuring robust and precise positioning.
- Helps mitigate interference to maintain high performance under challenging conditions.
Works with L8 or H8 Lightbar
The Satloc L8 or H8 Lightbar with the Bantam 2 has four (4) customizable display windows for data chosen options: heading angle, cross-track distance, spray rate, area sprayed, volume remaining, laser altimeter height, and much more.
Want to learn more about all the great features of the L8 or H8 when used with Satloc Bantam 2 GPS system?
Additional Tools
MapStar is a powerful software solution for pre-application mapping and post-application log replay and analysis. It supports importing and exporting common GIS file formats—including ESRI Shapefiles (.shp) and KML files—for easy overlay in Google Earth.
With MapStar, users can view, analyze, and export log data from any Satloc logging product. The software also supports variable rate applications and prescription maps, giving applicators greater control and insight into their operations.
Learn more about MapStar here, and visit Satloc’s YouTube channel for step-by-step MapStar how-to videos.
Features
- New 7-inch or 9-inch touch screen with moving map display
- Satloc AirTrac™ guidance software
- Export to Satloc Cloud or 2 USB Ports
- Compute sprayed area and total area
- Navigate to stored marks and waypoints
- Return to last sprayed point
- Store, analyze, and retrieve field data
- Offers increment/decrement swath line switches
Specifications
Component | Weight | Dimensions |
|---|---|---|
CPU with Cables | 11.4 lbs (1.99 kg) | CPU Dimensions: 3.15″ H x 8.65″ W x 5.50″ D (8 cm H x 21.97 cm W x 13.97 cm D) |
9″ Display Screen | 3 lbs (1.36 kg) | 6.74″ H x 9.08″ W x 2.50″ D (17.11 cm H x 23.06 cm W x 6.35 cm D) |
7″ Display Screen | 2.7 lbs (1.22 kg) | 5.50″ H x 8.04″ W x 3.20″ D (13.97 cm H x 20.42 cm W x 8.12 cm D) |
L8 Lightbar (Including Cable & Brackets) | 9 lbs (4.08 kg) | Lightbar Dimensions: 2.53″ H x 14.17″ W x 6″ D (6.4 cm H x 36 cm W x 15.24 cm D) |
A21 Antenna | 1 lb | Diameter: 5 1/8″ (13.08 cm) |
Bantam 2 Kits for Fixed Wing
Bantam 2 CPU with 9” Screen Kit for Fixed Wing with L8
900-2044-000
- Bantam 2 CPU with cables
- 9-inch touchscreen
- Antennas for GPS signal & WiFi
- L8 Lightbar with cable
Bantam 2 CPU with 7" Screen Kit for Fixed Wing with L8
900-2046-000
- Bantam 2 CPU with cables
- 7-inch touchscreen
- Antennas for GPS signal & WiFi
- L8 Lightbar with cable
Bantam 2 CPU with 9” Screen Kit for Fixed Wing Dash Mount H8
900-2044-100
+ Bantam 2 CPU with cables
- 9-inch touchscreen
- Antennas for GPS signal & WiFi
- H8 Lightbar with cable
Bantam 2 CPU with 7" Screen Kit for Fixed Wing Dash Mount H8
900-2046-100
+ Bantam 2 CPU with cables
- 7-inch touchscreen
- Antennas for GPS signal & WiFi
- H8 Lightbar with cable
Upgrade Kit: Bantam 1 to Bantam 2 for Fixed Wing with L8
900-2055-000
- Bantam 2 CPU
- Antenna, WiFi, dual band
- L8 Lightbar Kit
- Lightbar Cable
Bantam 2 Kits for Helicopters
Bantam 2 CPU with 9" Screen Kit with H8 for Helicopters
900-2044-111
- Bantam 2 CPU with cables
- 9-inch touchscreen
- Antennas for GPS signal & WiFi
- H8 Lightbar with cable installed on the LEFT
Bantam 2 CPU with 9” Screen Kit with H8 for Helicopters
900-2044-101
- Bantam 2 CPU with cables
- 9-inch touchscreen
- Antennas for GPS signal & WiFi
- H8 Lightbar with cable installed on the RIGHT
Bantam 2 CPU with 7” Screen Kit with H8 for Helicopters
900-2046-111
- Bantam 2 CPU with cables
- 7-inch touchscreen
- Antennas for GPS signal & WiFi
- H8 Lightbar with cable installed on the LEFT
Bantam 2 CPU with 7" Screen Kit with H8 for Helicopters
900-2046-101
- Bantam 2 CPU with cables
- 7-inch touchscreen
- Antennas for GPS signal & WiFi
- H8 Lightbar with cable installed on the RIGHT
Bantam 2 • Spray On/Off Upgrade Kits
Add precision spray control to your Bantam 2.
Take full command of your spray operations by adding the Spray On/Off Upgrade Kit, designed for seamless integration with your existing IntelliFlow™ system. These kits enable direct spray control from your Bantam 2 display—giving you smoother operation, faster response, and improved efficiency in the field.
Each kit includes all required components, code, and cabling for quick installation and reliable operation. Once installed, operators can activate or deactivate spray directly through the Bantam 2 interface—eliminating extra switches and simplifying workflow.
Bantam 2 - Spray On/Off Upgrade Kit for use with IntelliFlow 3
900-2063-000
- Bantam 2 Spray On/Off Unlock Code
- CBL, IF3, Bantam 2 Spray On/Off
- CBL, Bantam 2 Spray On/Off Solenoid Control
- Bantam 2 Spray On/Off Unit
Bantam 2 - Spray On/Off Upgrade Kit for use with IntelliFlow 2
900-2062-000
- Bantam 2 Spray On/Off Unlock Code
- CBL, IF2, Bantam 2 Spray On/Off
- CBL, Bantam 2 Spray On/Off Solenoid Control
- Bantam 2 Spray On/Off Unit
Bantam 2 - Spray On/Off Upgrade Kit for use with Legacy IntelliFlow
900-2061-000
- Bantam 2 Spray On/Off Unlock Code
- CBL, Legacy IntelliFlow, Bantam 2 Spray On/Off
- CBL, Bantam 2 Spray On/Off Solenoid Control
- Bantam 2 Spray On/Off Unit
Key Benefits
Seamless Integration – Works directly with Bantam 2 and IntelliFlow™ (Legacy, IF2, or IF3)
Enhanced Precision – On-screen spray control for consistent application accuracy
Streamlined Operation – Reduces cockpit clutter and simplifies pilot workload
Plug-and-Play Design – Easy installation with pre-configured harnesses and hardware
