At Satloc, we believe every Pilot deserves great aerial ag flow control. So, our team of Satloc engineers spent more than two years in research and development to improve the IntelliFlow 2. Next, the team created several prototypes to meet customers’ requests to make the IntelliFlow more rugged, easier, and cleaner to install, and reduce the overall footprint. Then, experienced pilots tested the IntelliFlow 3 in flight.
Satloc is proud to present IntelliFlow 3 (IF3).
The Only Dry & Wet Combination Dispersal System in one Controller
IntelliFlow 2 and 3 are the only combination dry and wet dispersal systems in the industry built into a single controller. With the IF3 on board and a Satloc GPS system, the pair automatically controls aerial spray and dry application rates. As a result, the IF3, working with a Satloc GPS, can produce highly accurate constant-rate applications. Also, the IF3 and GPS systems enable precise variable-rate applications using prescription maps (PMAPs). The required application rates are pilot selectable. Or, PMAPs can be created using Satloc MapStarTM desktop software.
What an Expert Says
“The IF3 is contained in one controller box, making it withstand more rugged conditions than the IF2. It’s also easier to install. The IntelliFlow 3 is the only option you would want to have right now for flow control. Also, it’s the only dry and wet option available in the industry. There is no other competition out there.”
Dispersal Rates
A pilot enters the desired rates through the GPS interface. As a result, the IF3 system will regulate and maintain selected rates. Once installed, the Satloc Falcon, Satloc G4, Satloc Bantam, or Satloc Bantam 2 GPS controls the IF3 system settings for the liquid.
The Falcon and G4 GPS systems work with both dry and liquid applications. Dispersal rates are automatically controlled with an accurate, constant applied rate or a variable rate based on the GPS’s prescription maps (PMAPs). Fine-tune applications with the rate bump feature for more precise applications.
This system sprays precise patterns using constant rate flow control, thereby reducing:
Fuel
Flying Time
Application Costs
Pilot Fatigue

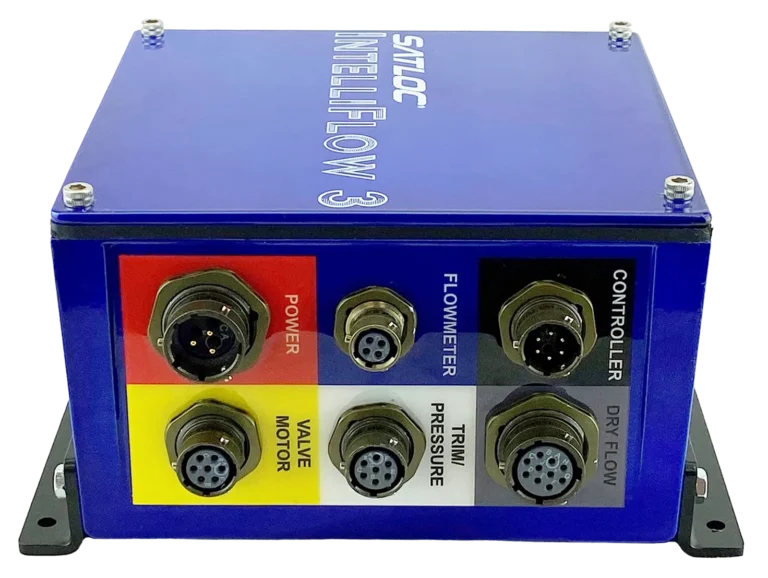

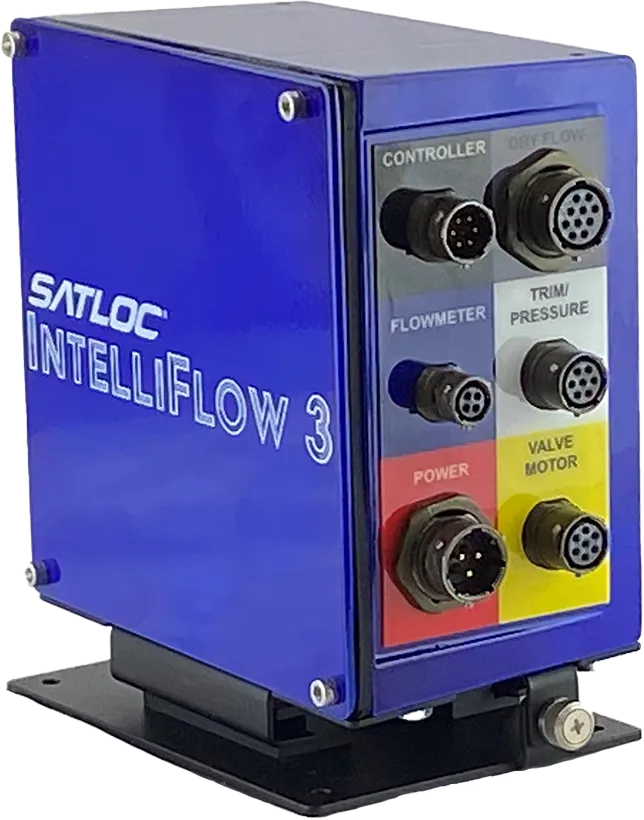

Mounting Options
Customers shared their desire for different mounting possibilities for Satloc’s next-gen combination dry and liquid dispersal system, so the engineers responded. As a result, the IntelliFlow 3 offers rack mounting and horizontal mounting. This well-thought-out feature allows the pilots to install the IntelliFlow 3 aerial spraying system in locations that best fit their planes.
GPS Compatibility
The Satloc Falcon and G4 GPS systems will easily switch between liquid and dry settings, resulting in better drift mitigation for aerial ag flow control. The Bantam and Bantam 2 GPS systems only apply liquid. Click on the buttons to view the selection of Satloc GPS systems:

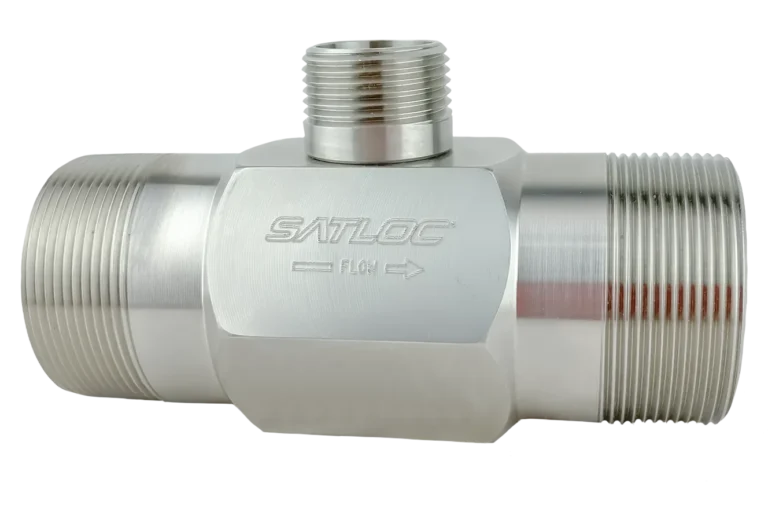

Functionality with Flow Meter
Equally important is the functionality of IntelliFlow 3 with other aerial ag application components.
Application issues are often due to improper flow meter selection. There is NOT a one-size-fits-all. To ensure accuracy, you need the right-sized meter. Use the flow meter sizing calculator to help calculate the right valve size for the application.
Resources
IntelliFlow 3 • New Liquid Kits

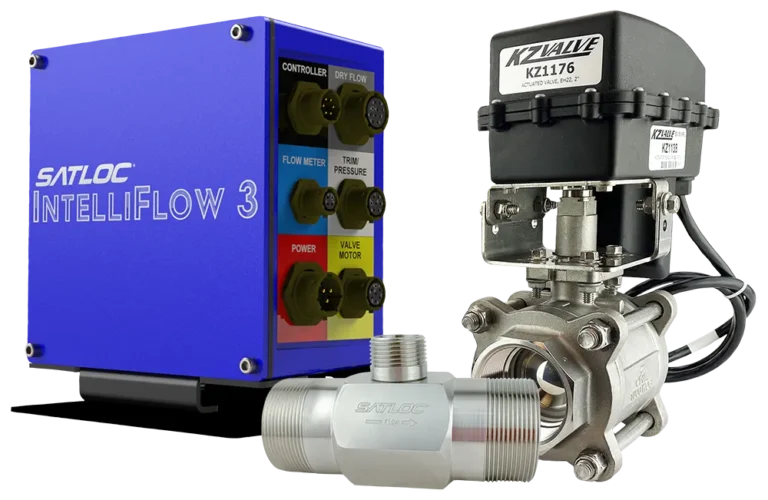

Achieve accurate, automatic flow control with IntelliFlow 3.
Designed for aerial applicators who demand precision and consistency, the IntelliFlow 3™ seamlessly integrates with compatible Satloc GPS systems to automatically regulate and maintain your target application rates. Whether you’re applying liquid products at standard volumes or operating in Ultra-Low Volume (ULV) environments, IntelliFlow 3 delivers dependable performance and greater control in the field.
Each Liquid Kit includes the controller, associated cabling, motorized valve, and flow meter with magnetic sensor—providing everything needed for a streamlined installation. Available in 1″, 1.5″, 2″, and 3″ configurations, IntelliFlow 3 Liquid Kits help ensure accurate application rates, reduced operator workload, and improved operational efficiency.
IntelliFlow 3 - Liquid Installation Kit for Falcon
900-3500-01
- Works with Satloc Falcon
- 1″ Flow Control Valve
- 1″ Stainless Steel Flowmeter
- 1″ Hose Barb
- All required wiring, sensors, and mounting hardware for installation
IntelliFlow 3 - Liquid Installation Kit for G4
900-3055-01
- Works with Satloc G4
- 1″ Flow Control Valve
- 1″ Stainless Steel Flowmeter
- 1″ Hose Barb
- All required wiring, sensors, and mounting hardware for installation
IntelliFlow 3 - Liquid Installation Kit for Bantam
900-3056-01
- Works with Satloc Bantam
- 1″ Flow Control Valve
- 1″ Stainless Steel Flowmeter
- 1″ Hose Barb
- All required wiring, sensors, and mounting hardware for installation
